Machining/Finishing, High-Precision Processing, High-Speed Rotation, with Center Air-Blow and Center Water-Blow functionalities The flange seat can be combined with clamping options of A4, A5, A6, A8, etc.

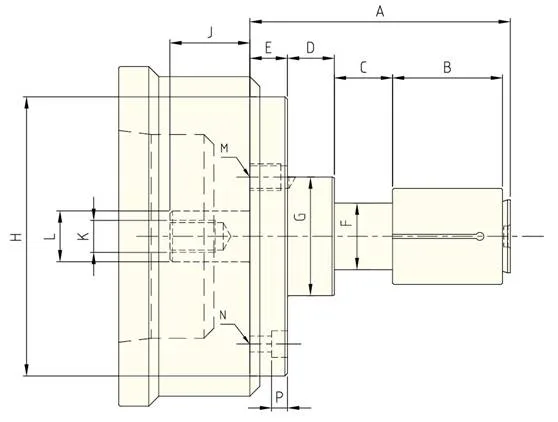

External Dimensions:
|
Dimensions Model Type |
Clamping Range [mm] | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| AC2410 | 22-31 | 90 | 36 | 14 | 22 | 14 | 21 | 44.5 | 104.8 |
| AC2510 | 28-41 | 98 | 41 | 17 | 22 | 14 | 27 | 44.5 | 104.8 |
| AC2610 | 37-53 | 105 | 46 | 20 | 18 | 17 | 35 | 63 | 123.8 |
|
Dimensions Model Type |
K | L | M | N | P | ||
|---|---|---|---|---|---|---|---|
| AC2410 | M12-P1.75 | 19 | 4-M12-P1.75 | M12用 | 8 | ||
| AC2510 | M12-P1.75 | 19 | 4-M12-P1.75 | M12用 | 8 | ||
| AC2610 | M18-P2.5 | 24 | 4-M12-P1.75 | M12用 | 9.5 |
Note: Our company can produce customized products. Our company hereby reserves the right to modify the specifications.
